Mining Laser Alignment Tools and Simple Setup

Equipment that’s out of line underground stops everything. Crews can’t work, production stalls, and costs pile up. Our laser alignment tools keep mining operations moving by making sure every measurement is right, even when dust, vibration, and cramped spaces get in the way.

Laser alignment in mining has moved far beyond the old days of string lines and visual checks. Today’s systems deliver pinpoint accuracy, even when the ground shakes or the air fills with grit. The right gear doesn’t just survive underground—it thrives. Crews depend on these tools to keep conveyors running straight, crushers locked in place, and tunnels on grade. When alignment slips, problems multiply. Belts wander. Rollers wear out. Equipment strains and breaks. The right laser tools stop these issues before they start.

Tools That Get the Job Done

Not every laser is built for the mine. Underground work demands equipment that shrugs off abuse and keeps readings tight. Here’s what matters:

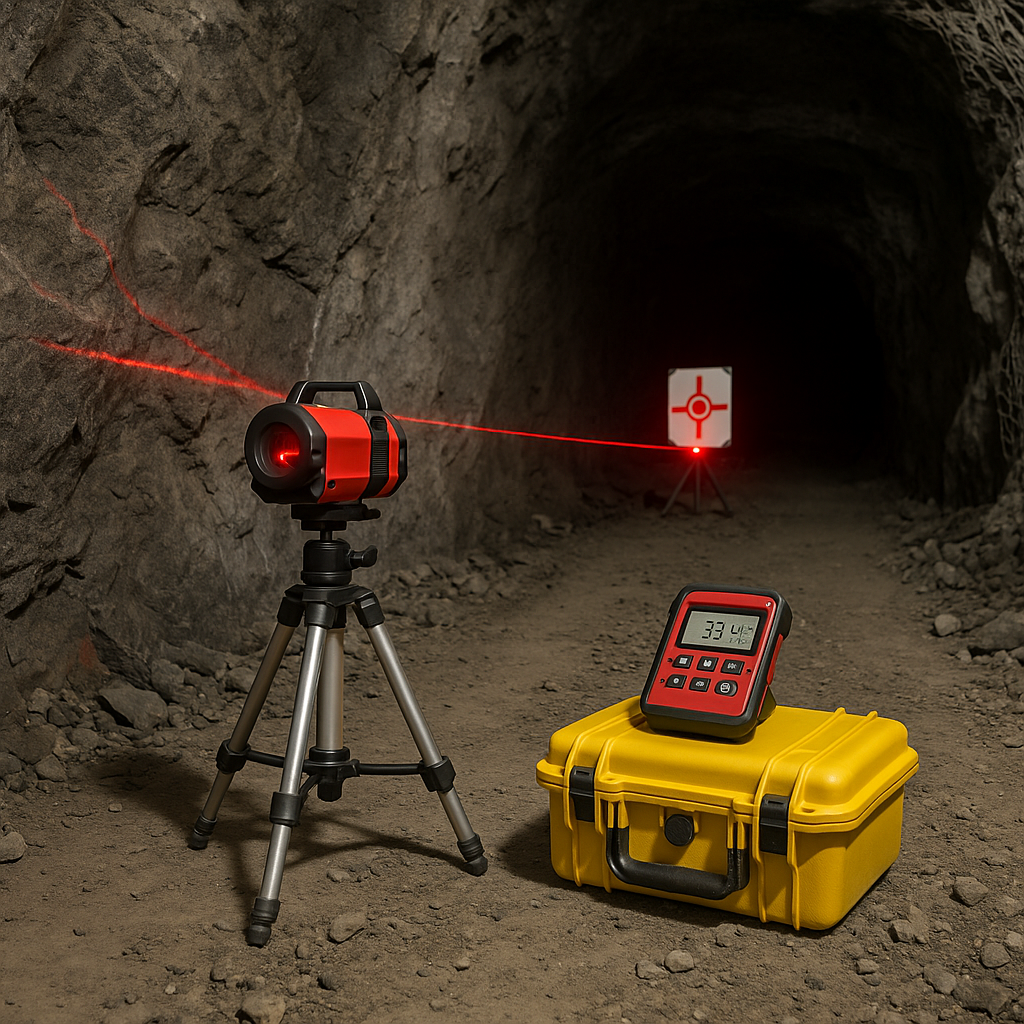

• Tunnel alignment lasers: Self-leveling, rugged, and bright enough to cut through dust. These set the line for everything that follows.
• Digital inclinometers: Grade control in real time. No more second-guessing slopes or angles.
• Laser receivers: Big, clear LED displays that crews can read at a glance, even in low light.
• Heavy-duty mounting brackets: No shifting, no sagging. Once set, they hold position through vibration and movement.
• Shock-resistant distance meters: Drop one on the tunnel floor, pick it up, and keep working. Accuracy stays locked in.
• Specialized alignment software: Instant feedback, easy data logging, and clear reports. No more scribbled notes or lost measurements.

Each tool fills a specific role. Together, they form a system that keeps mining operations on track. The best setups use only equipment rated for underground use: sealed against moisture, armored against impact, and tested for accuracy in the real world. Anything less leads to drift, wasted time, and expensive repairs.

Setup That Stays True

Alignment starts with the basics: solid mounting, clear reference points, and careful calibration. Skip any step, and the whole process falls apart. Secure every bracket. Double-check every line. Use reference marks that won’t fade or shift. Even the most advanced laser can’t fix a sloppy setup.

Calibration isn’t a one-time job. Underground, conditions change fast. Vibration, temperature swings, and daily use push equipment out of spec. Regular checks keep readings honest. Our crews log every calibration, every adjustment, and every baseline measurement. This record isn’t just paperwork. It’s the first line of defense against creeping errors. When something feels off, these logs point straight to the problem.

• Mount lasers on stable, vibration-free surfaces.
• Verify reference lines with physical markers: paint, bolts, or permanent fixtures.
• Check calibration before every shift, not just at installation.
• Keep detailed logs: date, time, readings, and any adjustments.

Documentation pays off when troubleshooting. A sudden drift in alignment? The logs show when it started and what changed. No more hunting for answers in the dark.

Where Alignment Matters Most

Underground mining throws up challenges at every turn. Alignment tools prove their worth in the toughest spots:

• Conveyor belts: Misalignment chews through belts and rollers. Lasers keep everything running straight, reducing wear and unplanned stops.
• Crushers: Precise positioning means smooth operation. A few millimeters off, and the whole system vibrates, jams, or wears unevenly.
• Ventilation systems: Ducts and fans need exact placement. Poor alignment cuts airflow and strains motors.
• Rail systems: Grade and alignment keep carts rolling smoothly. Errors here slow production and damage wheels.
• Tunnel boring: Lasers guide the path, keeping the bore on target and avoiding costly corrections.

Each job brings its own quirks. Some tunnels twist and dip. Others run straight for miles. The right combination of tools and setup protocols adapts to any environment. At MineSafe Electronics, we learn to spot trouble before it grows. Belt tracking off by a few millimeters, a crusher vibrating more than usual, or a ventilation duct that just doesn’t fit right. Laser alignment tools give us the data to act fast and fix issues before they snowball.

Real-World Payoff

Alignment isn’t just about numbers on a screen. It’s about fewer breakdowns, longer equipment life, and smoother shifts. Crews spend less time fighting with misaligned gear and more time moving ore. Maintenance teams catch problems early, swap out worn parts before they fail, and keep the whole operation running at peak efficiency.

• Reduced downtime: Equipment stays in service longer.
• Lower repair costs: Parts last, and failures drop.
• Safer work sites: No sudden jams or runaway belts.
• Consistent production: Targets met, day after day.

Laser alignment tools pay for themselves in weeks, not years. The difference shows up in every shift report and every maintenance log.

Ready to Optimize Your Mining Operations

Contact MineSafe Electronics at 800-523-1579 or request a quote to discuss your laser alignment needs. Our team will help you select and implement the right solution for your underground environment.
